 자동차용
승강기 |
 |

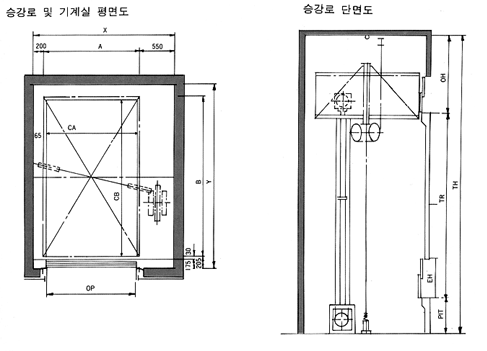

| 표준규격표 및 반력 |
| |
| SPEED(MPM)
|
OH |
PIT |
| 15 |
3400 |
1200 |
| 20 |
3400 |
1200 |
|
| |
| TYPE |
STANDARD |
THROUGH |
| CAPACITY (Kg) |
2000 |
2500 |
2000 |
2500 |
| OPENING (OP) |
2400 |
2700 |
2350 |
2700 |
| CARSIZE |
INTERNAL |
CA |
2400 |
2700 |
2350 |
2700 |
| CB |
5500 |
6235 |
5300 |
6200 |
| EXTERNAL |
A |
3300 |
2800 |
2450 |
2800 |
| B |
6000 |
6400 |
5500 |
6400 |
| HOISTWAY SIMPLEX |
X |
3400 |
3750 |
3400 |
3750 |
| Y |
5850 |
6750 |
5910 |
6810 |
| MACHINE ROOM
SIZE |
AM |
4500 |
4850 |
4500 |
4850 |
| BM |
5850 |
6750 |
5910 |
6810 |
| REACTION(Kg) |
R1 |
17500 |
22500 |
17500 |
22500 |
| R2 |
12000 |
15200 |
12000 |
12500 |
|
| |
|
|
 |
| |
|
|
|
